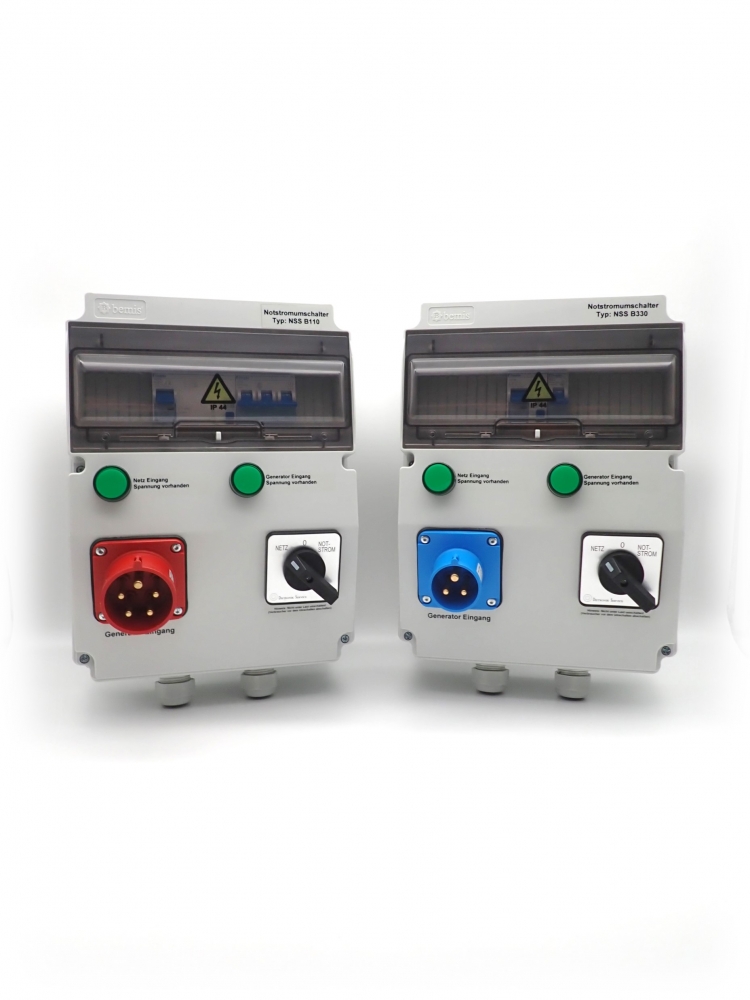

Emergency Power Switch / Mains Switch for Generator / (Type NSS B) NSS B 440

Item num.: NSSB440

Other models:
379,00 € *


Quantity available: 10 items
Delivery time: up to 3 days [*2]

    Variants:

    - 32A CEE 3-pin = type NSS-B 440: emergency power switch / mains switch 230V 1-phase CEE plug for emergency power supply

    Surface-mounted socket combinations for emergency power supply, pre-wired ready for connection!


    Manual emergency power switching is the simple and high-quality solution for a backup power system.
    With our high-quality manual emergency power switches type NSS B 440 for your power generator, you can easily and safely switch to the emergency power supply in the event of a power failure.
    In order to supply individual consumers in the building with electricity again in the event of a failure, the switch only has to be set to the respective one
    available feeds that are displayed can be switched on.


    Equipment / connection options:

    • Built-on device plug CEE 3-pin in 32A
    • 63A 2-pole transfer switch
    • Feed-in connection 3 x 10 mm²
    • Consumer connection 3 x 10 mm²
    • 2x signal lights for voltage available
    • Protection class IP66 housing (overall protection class IP44)
    • 2-pole 40A type A fault circuit breaker
    • Circuit breaker 1-pole 32A type B
    • Cable entry: 2XM25 (Bottom)
    • Handling: wall mounting
    • Dimensions: H:320mm x W:240mm x D:140mm


    Scope of delivery:

    • Manual emergency power switch / mains switch in ABS plastic housing and on terminal strip including fastening material for the cover.
    • Operating and connection instructions / EC declaration of conformity (CE)




    The representations, data and properties given may deviate from the current versions of the products. Errors and changes to the products as well as misleading interpretation of product properties are possible.
